VisionTIR Spain multispectral thermography System


     Infrared Thermal Imaging System for Continuous Temperature Monitoring

Based on high resolution thermal cameras and a specific software, ProTIR provides real radiometric images that accurately measure temperature inside of furnaces, rotary kilns, coolers, incinerators and boilers in the steel, minerals, power generation and process industries.

In addition, ProTIR is also ideal for glass melt furnaces, steam reformer and cracker tube furnaces, enabling process control optimization, energy efficiency savings and prolonging the lifetime of the furnaces and reformer tubes.
• High-definition thermal images
• Radiometric images with accuracy
• Temperature information
• Flame shape optimization
• Process control optimization
• Energy efficiency savings
• Long term reliability
• Minimal maintenance
• 2 years warranty
• Automated alarm outputs
• OPC connection

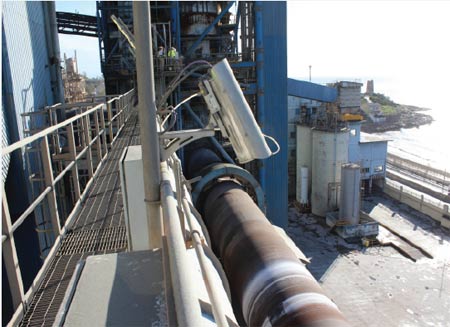

Rotary Kiln Monitoring System
The thermal camera-based kiln shell monitoring system RKS300 monitors kiln shell and provides real-time inspection of the entire kiln length. It integrates hardware and software as a solution, allowing the detection and measurement of all hotspots on the kiln shell, even at an early stage.
With real time inspection at the highest resolution (up to 3.200 measuring points per line), the RKS300 purpose is to ensure proper kiln-shell safety and durability, optimize kiln efficiency and reduces the cost of maintenance due to damage and unscheduled downtime.
• Higher field of view for new larger kilns (up to 4 thermal cameras with 110º view angle)
• Higher resolution for refractory detail (up to 3.200 measuring point per line)
• High sensitivity to identify even the smaller temperature changes and hot spots
• Easy integration and communication of all data to Plant Control System
• Pre-wired and pre-tested for an easy installation
• Calibration checks are not required
• Fiber optic communication
