FeverTIR | Fever detection system

Thermography system for body temperature measurement

The Fever Detection System FeverTIR is designed to quickly and accurately measure people's body temperature without contact. The system alerts about people who exceed the established maximum body temperature, detecting possible cases of fever, one of the most obvious symptoms of Covid-19 infection, as well as similar contagious diseases.

Body temperature measurement

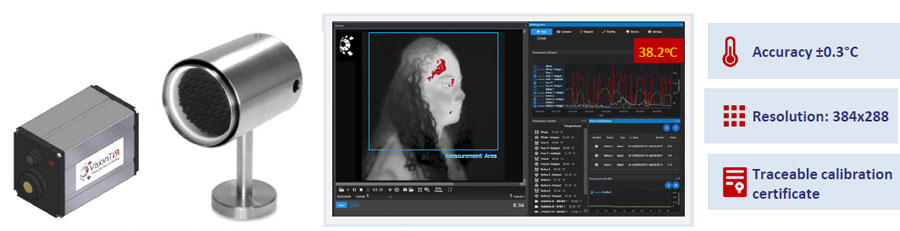

The system combines a high-precision thermal camera with a visible Full HD camera allowing body temperature measurement and the identification of people, with fast recording of the data obtained. The system provides an accuracy of ±0.5°C  and traceable calibration certificate is included.

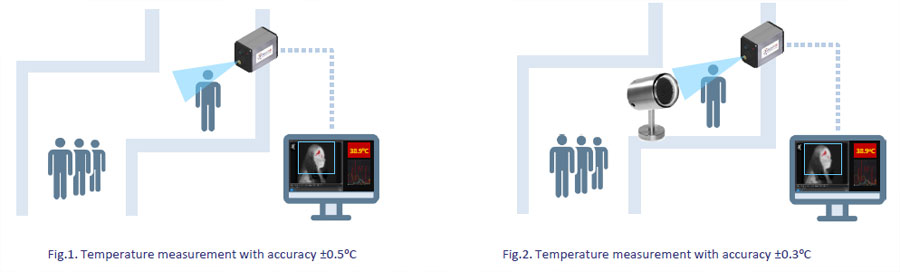

(see fig. 1).

For higher accuracy in temperature measurement (±0.3°C ), there is the option of incorporating a black body source (see fig. 2). In this case, a traceable calibration certificate is also included.

Software

The included software provides a very intuitive interface for the control and configuration of temperature, alarms and recording functions, as well as for the analysis of the measured data. Its digital output module allows easy integration with other systems.
Main features
▪ High resolution: 384 x 288 pixels
▪ High sensitivity: 60mK
▪ High accuracy: ±0.5°C (± 0.3°C using black body)
▪ Integrated visible spectrum camera (RGB full HD)
▪ Display of both cameras on the screen (thermal + visible)
▪ Simultaneous recording of video and images (RGB and thermal)
▪ Special calibration temperature range for measuring facial temperature
▪ System setup and analysis software included with the camera
▪ Generation of pre-alarms and alarms with on-screen notification
▪ Real-time hot spot analysis
▪ Easy integration with other systems

FeverTIR  Product Catalogue
